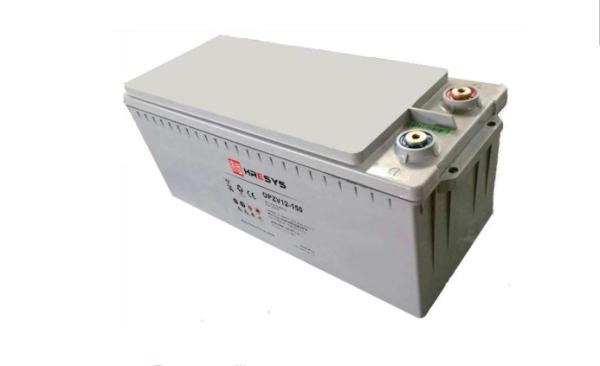

OPzV12-150 12V Tubular Gel Batteryfor Renewable Energy System , 532 x210 x 216 mm
HRESYS OPzV12-150 With the rubust die cast positive tubular plate design and fumed gelled electrolyte, OPzV 12V series offers very good cycle life and high reliability with 12 years life. OPzV 12V series is ideal for use in renewable energy system, telecom and other cyclic/standby harsh environment applications.
OPzV series offer long cycle life , reliability and safety,higher cost performance,large current discharge capability, and environmental protection.
- Tubular positive plate and Fumed Silica gel gel electrolyte with prolonged cycle life
low density electrolyte with fast charging
- Excellent deep discharge recovery capability
- 12 years design life at floating condition
- Wide operating temperature range from -40°C to 60°C
- Lead Calcium die cast grid with improved corrosion resistance capability
- Reliable maintenance-free and leakage-free construction
- Low self-discharge rate and long shelf life (1 year at 25°C)
o Home & Mini Energy Storage System
o Microgrid / Off-grid Power System
o Uninterrupted Power Supply (UPS)
o Emergency Power Supply
o Solar Street Lights
o Telecommunication
| Nominal Voltage (V) | 12 (6 cells per unit) |
| Nominal Capacity (25 C) | 150 Ah@10HR-rate (to 1.80Vpc) |

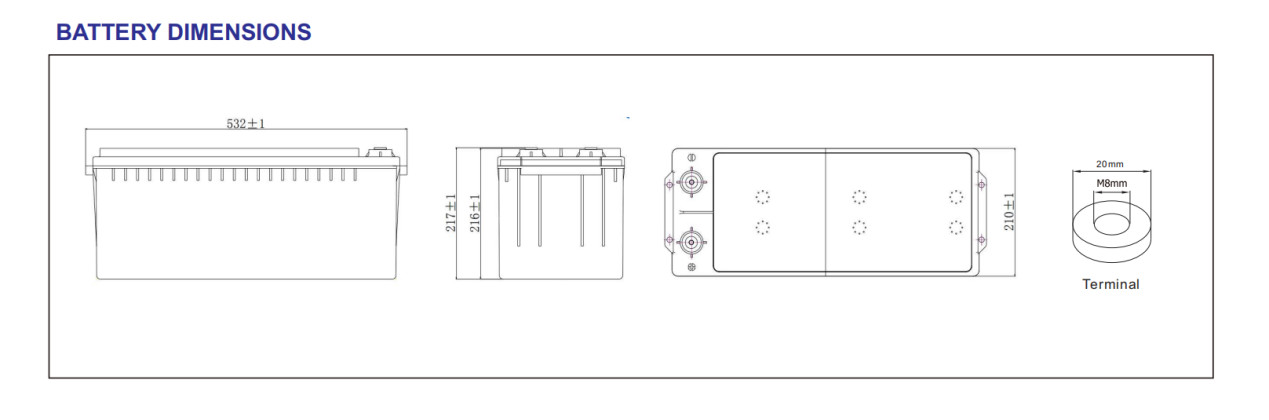

| Dimension (mm) | L532mm x W210mm x H216mm |
| Approx. Weight | 56.5 kg (124.6 lbs) |
| Terminal Type | Female Copper Insert M8 |
| Internal Resistance | Approx. 0.0006 Ohm (fully charged) |
| Self Discharge | Approx. 2.5% per month @ 20°C |
| Ambient Temperature | Discharge: -20~55°C
Charge: -20~45 C
Storage: -20~45 C |
| Float Charge Voltage | 13.3 to 13.5V/block @25 C (-3mV/ cell/ C) |
| Cycle Use Charge Voltage | 14.1 to 14.4V/block @25 oC |
| Container Material | ABS UL ( 94-V0 optional) |
o IEC 6 - 1056-1
o GB/T 22199
o GB/T 19639-1
o JIS C870 - 2 1
- Management and Product Certificates
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
High cycle performance: up to 1000 cycle at 80%DOD
1) Cycle method: Total discharge is 80% DOD at customer practice condition, charge with constant current and constant voltage (CC-CV) mode, charge time shall be 10 - 12 hours at least. This is one cycle.
