12V 90AH Duration Top Terminal Lead-acid Batteries for IDC, L306.5mm x W168mm x H208.5mm
HRESYS DT Series Duration Top Terminal Valve Regulated Lead Acid Battery is specially designed for UPS
Applications including telecom, UPS, IDC, security and alarm system, utilities, emergency light systems, CATV and other backup applications.
With corrosion resistance thick grid, international leading technologies and State-of-the-art automated manufacturing, DT series offer long cycle life, large current discharge capability, high consistency reliability and safety, and environmental-friendly.
- It’s designed to operate for up to 12 years at 25°C on the basis of accelerated tests.
- Valve Regulated Lead Acid AGM technology
- Low self-discharge, long shelf life, wide operation temperature Range
- Flexible design for multiple installation space
- Self-regulating pressure relief valve with flame arrester
| Nominal Voltage (V) | 12 |
| Nominal Capacity (25 C) | 90 Ah@C10 (to 1.80Vpc) |

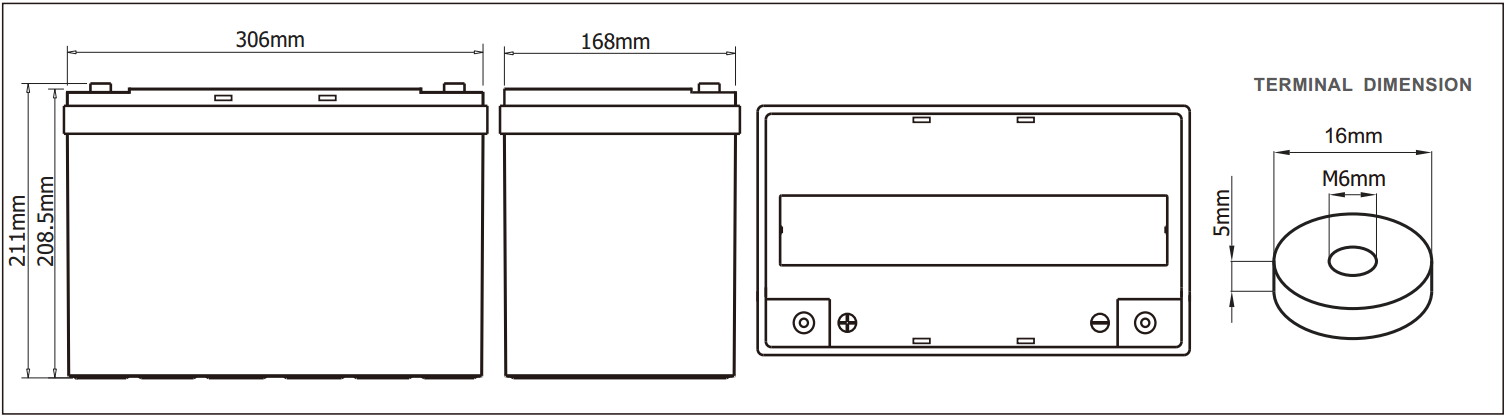

| Dimension (mm) | L306.5mm x W168mm x H208.5mm |
| Approx. Weight | 26.0 kg (57.3 lbs.) |
| Terminal Type | Female Copper Insert M6 |
| Internal Resistance | Approx. 0.0055 Ohm (fully charged@ 20°C) |
| Max. Charge Current | 22.5 A |
| Self-Discharge | Approx. 3% per month @ 25°C |
| Ambient Temperature | Discharge: -20~55°C Charge: -20~50 °C Storage: -20~45°C |
| Float Charge Voltage | 13.6V/block @25℃ |
| Equalize Charge Voltage | 14.4V/block @25℃ |
| Container Material | ABS (UL94-V0 optional) |
o Outdoor telecom
o UPS
o IDC
o Security and alarm system
o Utilities
o Emergency light systems
o CATV
o IEC 6 - 1056-1
o GB/T 22199
o GB/T 19639-1
o JIS C870 - 2 1
- Management and Product Certificates
o ISO9001:2015
o ISO14001:2015
o OHSAS18001:2007
o CE Certificate
· Cyclic Characteristics
High cycle performance: up to 550 cycle at 80%DOD
Product Tags:
|
|
90AH Duration Top Terminal UPS Lead Acid Battery 12V For IDC L306.5mm X W168mm X H208.5mm Images
|
